12 2 Vs 14 2 Wire: Which One Should You Choose?

If you're an electrician or a DIY enthusiast, you probably know that choosing the right wire size is crucial in any electrical project. Among the most common wire sizes used in residential and commercial buildings are the 12 2 and 14 2 wires. But what are the differences between these two wires, and which one should you choose for your next project? In this blog post, we will explore the features of both wire types and help you make an informed decision.

Wires are the veins of any electrical system. They conduct electricity from the power source to different parts of the building, ensuring that everything runs smoothly. However, not all wires are created equal. The size of the wire determines how much current it can handle and how far it can travel before losing voltage. Choosing the wrong wire size can result in overheating, fire hazards, and even damage to your electrical devices.

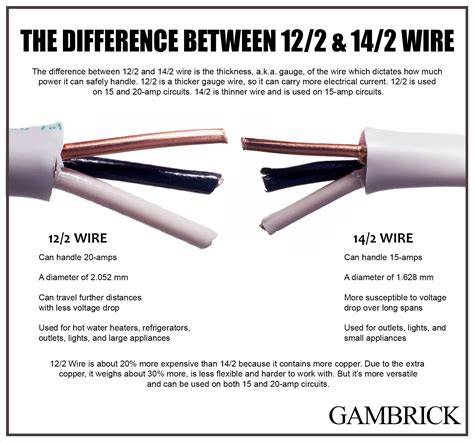

The 12 2 and 14 2 wires are both part of the non-metallic sheathed cable (NM) family, which means they are insulated wires wrapped in a plastic jacket. They are commonly used for lighting fixtures, outlets, and other low-voltage applications. The main difference between the two wires is their gauge size, with the 12 2 wire being thicker than the 14 2 wire.

Features of 12 2 Wire

The 12 2 wire is a 2-conductor wire with a ground wire. It has a diameter of 0.257 inches and can handle a maximum amperage of 20 amps. Here are some of the features of the 12 2 wire:

• Capacity: The 12 2 wire can handle a higher load than the 14 2 wire, making it suitable for appliances and equipment that require more power.
• Distance: The 12 2 wire can travel a longer distance than the 14 2 wire without losing voltage. This means you can use it for circuits that are farther away from the electrical panel.
• Cost: The 12 2 wire is more expensive than the 14 2 wire due to its larger size and capacity.

Features of 14 2 Wire

The 14 2 wire is also a 2-conductor wire with a ground wire. It has a diameter of 0.204 inches and can handle a maximum amperage of 15 amps. Here are some of the features of the 14 2 wire:

• Capacity: The 14 2 wire is suitable for low-voltage applications such as lighting fixtures and outlets that do not require a lot of power.
• Distance: The 14 2 wire is best used for circuits that are closer to the electrical panel, as it loses voltage over long distances.
• Cost: The 14 2 wire is less expensive than the 12 2 wire due to its smaller size and capacity.

Which One Should You Choose?

Choosing between the 12 2 and 14 2 wire depends on your project's requirements. If you need to power appliances or equipment that require more power, the 12 2 wire is the better choice. However, if you're working on a low-voltage application such as lighting fixtures or outlets, the 14 2 wire will suffice.

Moreover, the distance of the circuit from the electrical panel also plays an essential role in determining which wire to use. If the circuit is farther away from the electrical panel, the 12 2 wire is the better option since it can travel longer distances without losing voltage. On the other hand, if the circuit is closer to the electrical panel, the 14 2 wire is the more economical choice.

Other Factors to Consider

Aside from the wire size and distance, there are other factors to consider when choosing the right wire for your project. These include:

• Voltage: Make sure the wire's voltage rating matches that of your electrical system.
• Cable Type: Choose the appropriate cable type depending on where you will be installing the wire. For example, NM-B cables are suitable for indoor use, while UF-B cables are more appropriate for outdoor installations.
• Wire Color: The color of the wire's insulation also matters, as it helps you identify which wire is which. In most cases, black or red wires are used for hot wires, white wires are used for neutral wires, and green or bare wires are used for ground wires.

Choosing the right wire size can make a significant difference in any electrical project. While the 12 2 wire is more expensive than the 14 2 wire, it can handle a higher load and travel longer distances without losing voltage. On the other hand, the 14 2 wire is best used for low-voltage applications that are closer to the electrical panel. Remember to consider the wire's voltage rating, cable type, and wire color when choosing the right wire for your project.

Frequently Asked Questions

1. What does 12 2 wire mean?

The 12 2 wire means that it is a non-metallic sheathed cable (NM) with two 12-gauge wires and a ground wire.

2. Can I use 14 2 wire instead of 12 2 wire?

It depends on your project's requirements. The 14 2 wire has a smaller capacity and can only handle up to 15 amps, while the 12 2 wire can handle up to 20 amps. If you need to power appliances or equipment that require more power, the 12 2 wire is the better choice.

3. What is the maximum distance for 12 2 wire?

The maximum distance for 12 2 wire depends on the circuit's load and the wire's voltage drop. As a general rule, the maximum distance for a 20-amp circuit with 12 2 wire is around 120 feet.

4. Can I use 14 2 wire for outlets?

Yes, you can use 14 2 wire for outlets that do not require a lot of power. However, if you plan to power appliances or equipment that require more power, it is best to use 12 2 wire instead.

5. Is 14 2 wire safe for a 20-amp circuit?

No, 14 2 wire is not safe for a 20-amp circuit. The wire's capacity is only up to 15 amps, which means it cannot handle the load of a 20-amp circuit.

6. Can I mix 12 2 and 14 2 wire in the same circuit?

No, it is not recommended to mix different wire sizes in the same circuit. This can result in overheating and damage to your electrical devices.

7. What is the difference between 12 3 and 12 2 wire?

The 12 3 wire has an additional conductor compared to the 12 2 wire. It contains two 12-gauge wires, a neutral wire, and a ground wire. This type of wire is commonly used for three-way switches and other applications that require multiple circuits.

8. What is the price difference between 12 2 and 14 2 wire?

The price difference between 12 2 and 14 2 wire depends on the brand and supplier. However, in general, the 12 2 wire is more expensive than the 14 2 wire due to its larger size and capacity.

9. What is the maximum amperage for 14 2 wire?

The maximum amperage for 14 2 wire is 15 amps. This wire is best used for low-voltage applications such as lighting fixtures and outlets that do not require a lot of power.

10. Can I use 12 2 wire for a ceiling fan?

Yes, you can use 12 2 wire for a ceiling fan. However, make sure the wire's amperage rating matches that of the ceiling fan. You should also follow the manufacturer's instructions when installing the ceiling fan.
